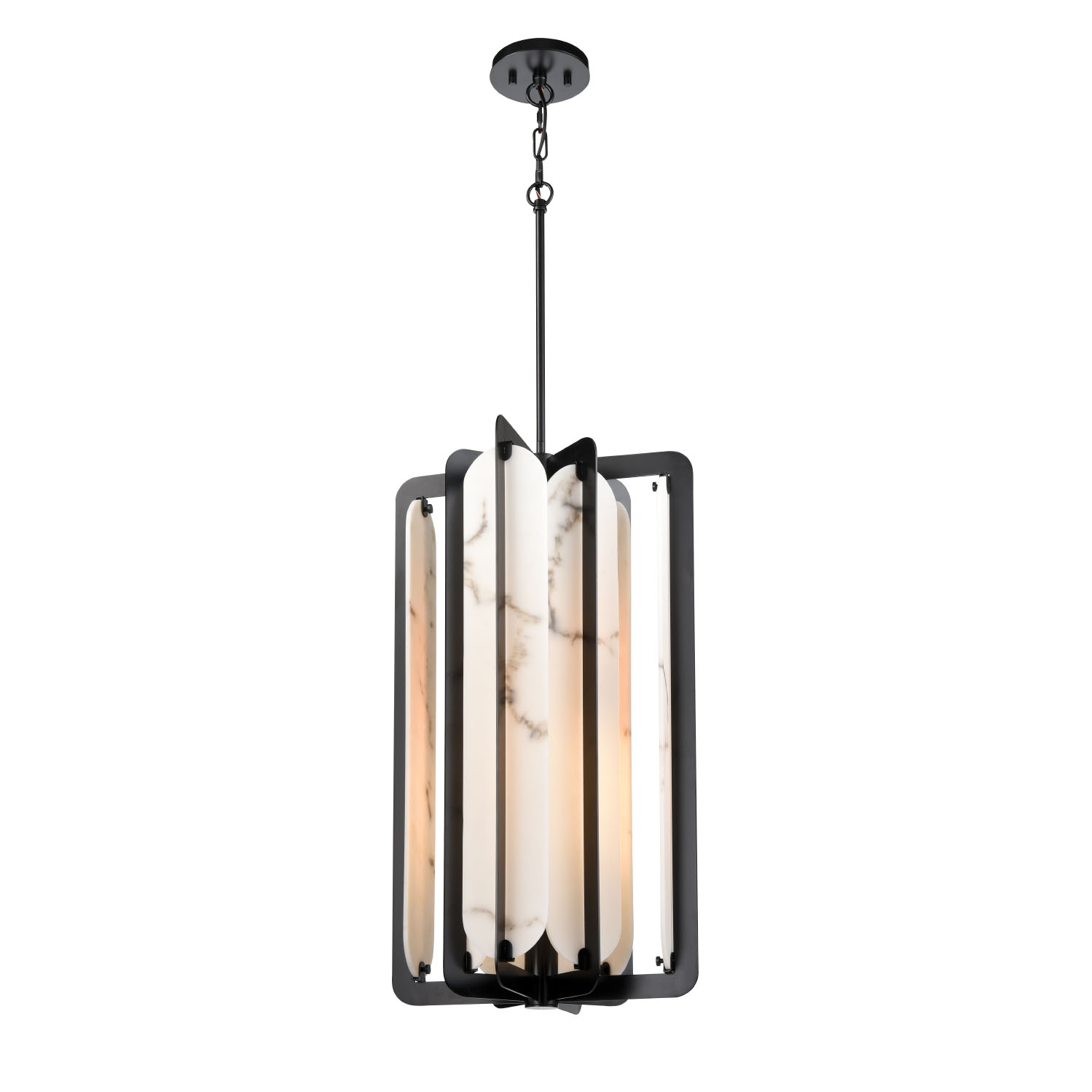

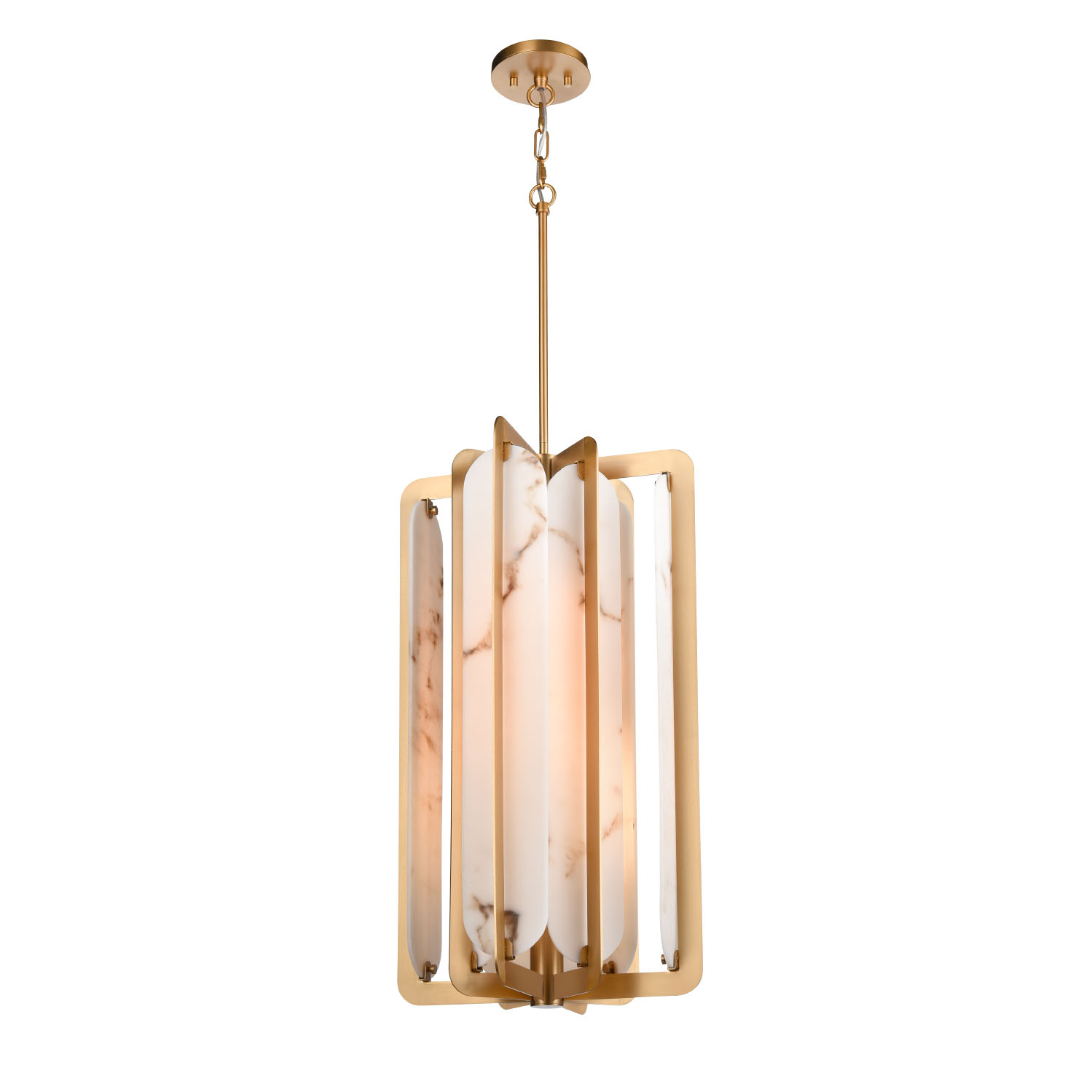

Jasper 15″ Foyer
Product Description
Last inventory update: July 26, 2024 8:11 pm
Resources
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP49748 |
| Family | Jasper |
| Product Class | Ceiling |
| Product Subclass | Foyer |
| Room Category | Living Spaces |
| Warranty | 5 Years Residential |
Product Dimensions
| Product Length / Diameter | 14.75 inches | 377 mm |
| Product Width | N/A inches | N/A mm |
| Product Depth | N/A inches | N/A mm |
| Product Height | 27.75 inches | 702 mm |
| Minimum Product Height | 33.25 inches | 845 mm |
| Maximum Product Height | 69.25 inches | 1760 mm |
| Canopy Length / Diameter | 4.75 inches | 123 mm |
| Canopy Width | N/A inches | N/A mm |
| Canopy Thickness | 0.75 inches | 17 mm |
Lamping Specifications
| Orientation of Light Source | Multidirectional |
| Number of Sockets | 4 |
| Total Wattage | 4 X 40 |
| Wattage of Individual Bulb Socket | 40 |
| Voltage (V) | 120 |
| Lamping Confinement | Mostly Open |
| Socket Type | Medium Base (E26) |
| Recommended Bulb | E26 T10 Long Clear |
| Bulbs Included | No |
LED Information (LED Only)
| Initial Lumens Output | N/A |
| Delivered Lumens (2700K) | N/A |
| Delivered Lumens (3000K) | N/A |
| Delivered Lumens (3500K) | N/A |
| Delivered Lumens (4000K) | N/A |
| Delivered Lumens (5000K) | N/A |
| Required Dimmer | N/A |
| CRI | N/A |
| Color Temperature | N/A |
Pipe / Chain / Cord Information
| Pipe / Chain Included | Yes |
| Pipe Information | N/A |
| Chain Information | 36 in |
| Wire / Cord Information | 120 in |
| Max Sloped Ceiling Angle | 90° (Chain Link) |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | No |
| Up / Down Mountable | N/A |
| Installation Height Adjustable | N/A |
| Location Certification | Dry Locations Only |
| ADA Compliant | N/A |
| Heavy Duty Mounting Kit Available | N/A |
| Additional Kit Available | N/A |
