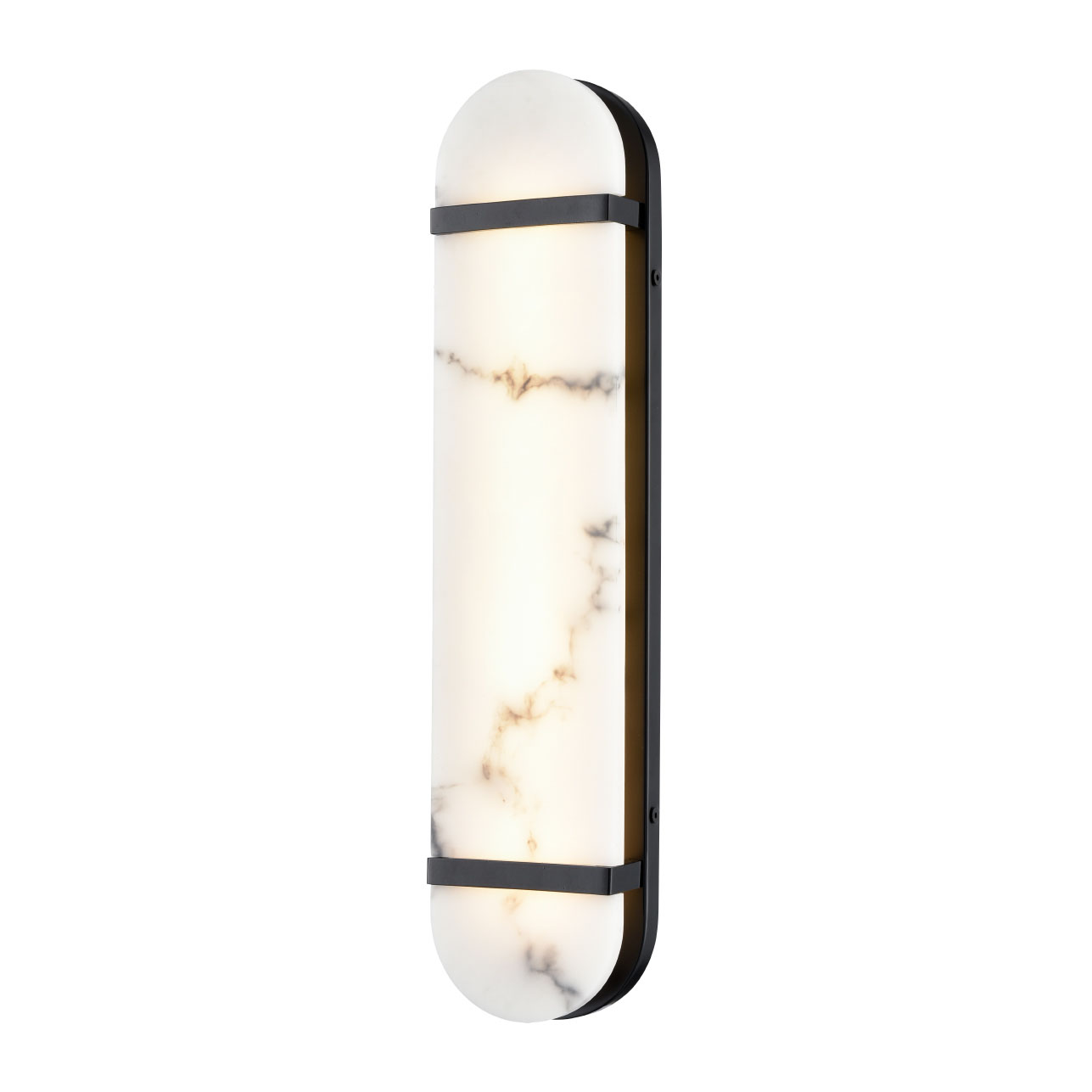

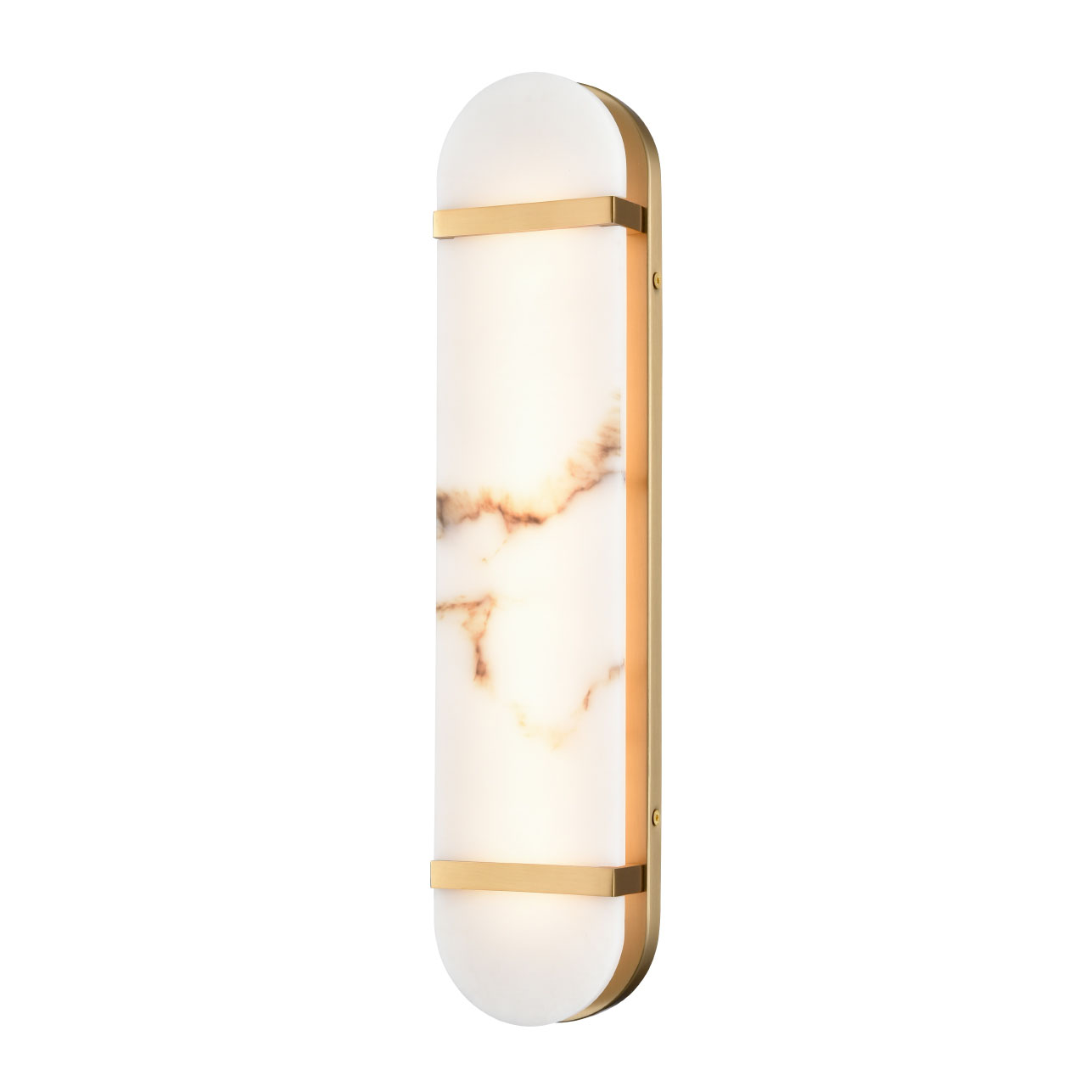

Jasper 24″ LED Vanity
Product Description
Last inventory update: June 30, 2024 12:11 pm
Resources
General Product Information
Product Dimensions
Lamping Specifications
LED Information (LED Only)
Pipe / Chain / Cord Information
Additional Information
General Product Information
| Parent Code | DVP49743 |
| Family | Jasper |
| Product Class | Wall |
| Product Subclass | Vanity |
| Room Category | Bathroom |
| Warranty | 5 Years Residential or 20000 Hours Commercial |
Product Dimensions
| Product Length / Diameter | N/A inches | N/A mm |
| Product Width | 4 inches | 102 mm |
| Product Depth | 4 inches | 104 mm |
| Product Height | 24 inches | 610 mm |
| Minimum Product Height | 24 inches | N/A mm |
| Maximum Product Height | N/A inches | N/A mm |
| Canopy Length / Diameter | 7.75 inches | 200 mm |
| Canopy Width | 4 inches | 100 mm |
| Canopy Thickness | 0.75 inches | 20 mm |
Lamping Specifications
| Orientation of Light Source | Sideways |
| Number of Sockets | 1 |
| Total Wattage | 24 |
| Wattage of Individual Bulb Socket | 24 |
| Voltage (V) | 120 |
| Lamping Confinement | Fully Enclosed |
| Socket Type | AC LED |
| Recommended Bulb | N/A |
| Bulbs Included | No |
LED Information (LED Only)
| Initial Lumens Output | 2400 |
| Delivered Lumens (2700K) | N/A |
| Delivered Lumens (3000K) | 1003 |
| Delivered Lumens (3500K) | N/A |
| Delivered Lumens (4000K) | N/A |
| Delivered Lumens (5000K) | N/A |
| Required Dimmer | C•L / LED+ / Universal LED |
| CRI | 90+ |
| Color Temperature | 3000K |
Pipe / Chain / Cord Information
| Pipe / Chain Included | Not Included |
| Pipe Information | N/A |
| Chain Information | N/A |
| Wire / Cord Information | 8 in |
| Max Sloped Ceiling Angle | N/A |
| *Conversion 19° to 45° : ASY0101 + Finish (2 Loops + 1 Chain): For Additional Cost | |
Additional Information
| Wall / Ceiling Mountable | Yes |
| Up / Down Mountable | Yes |
| Installation Height Adjustable | No |
| Location Certification | Dry Locations Only |
| ADA Compliant | Yes |
| Heavy Duty Mounting Kit Available | No |
| Additional Kit Available | No |
